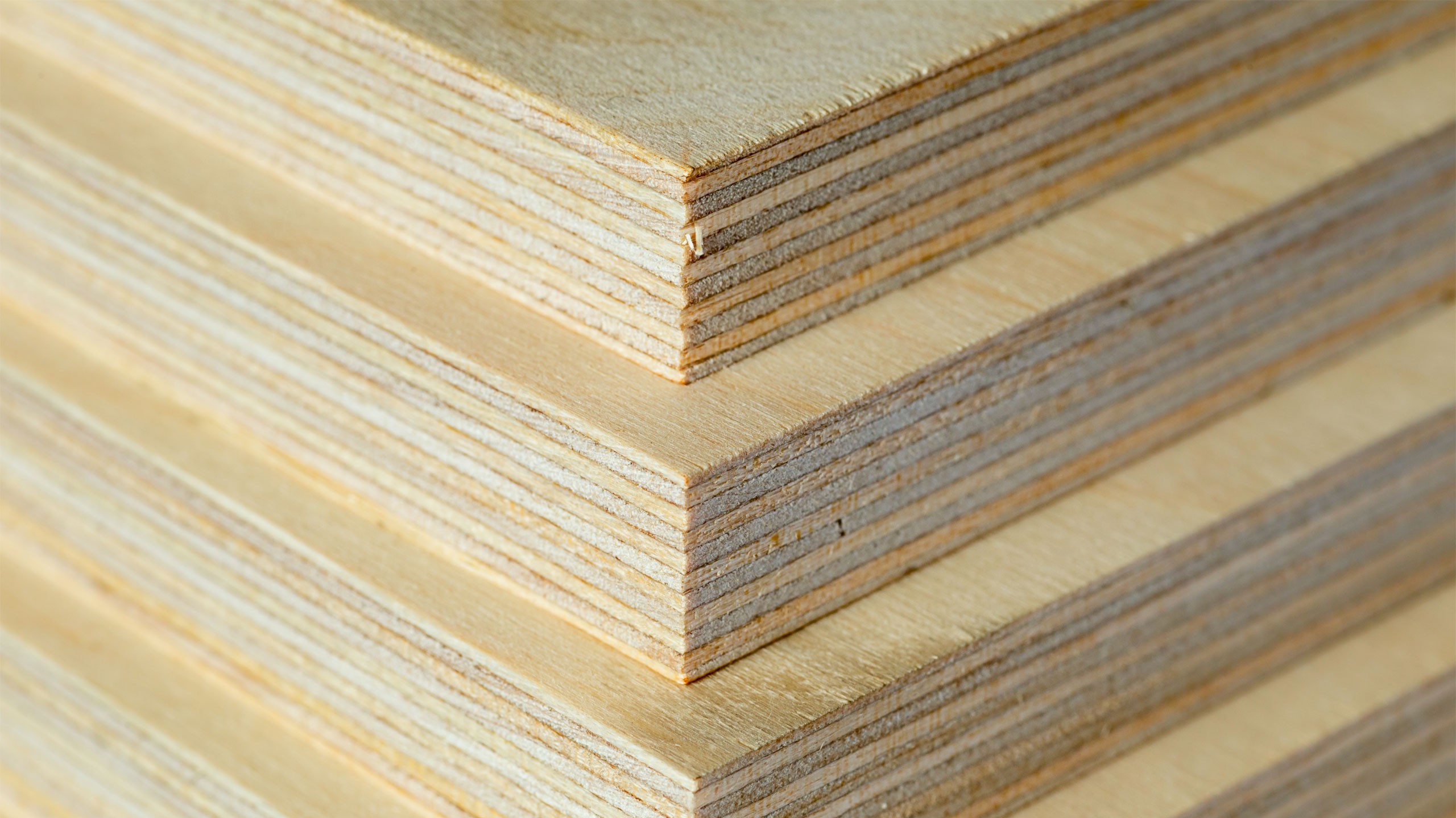

Canadian Softwood Plywood refers to plywood produced in Canada that has clear surface curly grains, naturally reproducing the feeling of wood. It is solid with excellent strong and stability so as to be used widely for structural application and interior finish material, etc. Due to the use of waterproof adhesives, it is resistant to moisture with good durability and recovery stability, having light weight compared with other products and allowing smooth use of tools for utilization in diversified uses.

CSP is approved by guaranteeing of CANPLY and follows the corresponding grade regulations.

About CSP

CSA GRADES	SPECIES	PANEL SIZES		REPAIRS
		Thickness	Width/Lenght
SELECT TF	DFP (Douglas-fir Plywood) CSP (Canadian Softwood Plywood)	9.5 mm to 25.5 mm (3/8" to 1")	Standard : 1220 x 2440 mm (4' x 8’) Custom : From : 610 x 2273 mm To : 1245 x 2465 mm	Wood patch Wood-based putty
SELECT
SHEATHING
SANDED
OVERLAYS
SPECIALTIES

JAS 233 Structural Plywood	SPECIES	PANEL SIZES		Formaldehyde Emissions	T&G
		Thickness (Typical)	Width /Length (Typical)
C-C	CSP, DFP	9.5mm to 18.5mm	1220 x 2440mm	F****	Avail

NAME	SPECIFICATIONS	TYPICAL APPLICATIONS	COMMENTS
CANPLY Patented EASY T&G (Floor)	- 15.5 to 22.5 mm - CSP - Select TF, Select or Sheathing grade	Subfloor, combined subfloor and underlayment, roof sheathing.	Brochures and samples available.
CANPLY Patented EASY T&G (Roof)	- 12.5 mm - CSP - Sheathing grade	Roof or wall sheathing	No H-Clips required when used as roof sheathing. Brochures and samples available.
Full Sand 1 side Full Sand 2 Sides	- 12.5, 15.5, 18.5 mm - CSP	Applications where a smooth finish is required.	Samples available.
CHALET RUSTIC (CanWel product)	- 9.5 mm - CSP - Grooved 8" C.C. - 4' x 8' - Stained - Select grade	"Rustic" siding	Distributed by CanWel
INDUSTRIAL GRADE	- Industrial sector		Mill grade higher than Select Tight Face
PRO/PLY	- 8.5 DFP	Underlayment	Wood and Water based putty
OIL AND EDGE SEALED (O&ES)	- 18.5 mm - DFP - Select TF - Oiled Face - Sealed edges	Concrete forms	Provided as a service by off-site facility
EDGE SEALED	- 18.5 mm - DFP - Select TF - Sealed edges	Concrete forms	Provided as a service by off-site facility

Certificate

CSP

Canadian Softwood Plywood has clear surface curly grains, naturally reproducing the feeling of wood.
